- Stock: In Stock
- Model: KOLAUT-STEP-3917168
- Weight: 1.00
- SKU: KOLAUT-STEP-3917168
Available Options

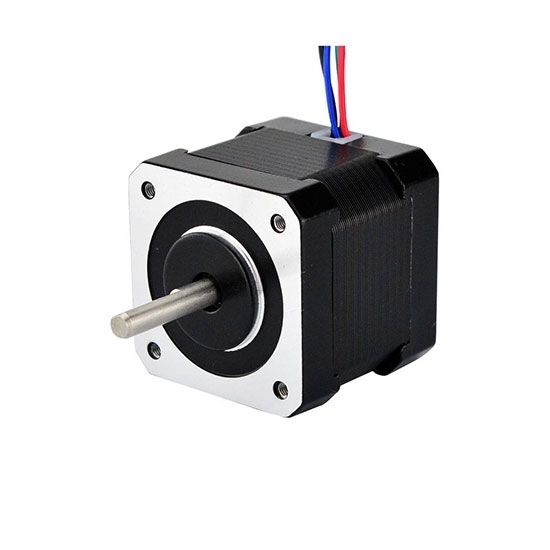

Nema 17 bipolar stepper motor, 2.8V 1.68A, 2 phase 4 wires, it with 1.8 deg. step angle (200 steps/revolution), brand new and direct sale by manufacturer.
Specifications
| Electrical Specification | Model | KOLAUT39-1684A |
| Step Angle | 1.8° | |
| Holding Torque | 3.6kg-cm(50oz.in) | |
| Voltage | 2.8V | |
| Rated Current/phase | 1.68A | |
| Phase Resistance | 1.65Ω | |
| Inductance | 4mH | |
| Rotor Inertia | 54g-cm2 | |
| Physical Specification | Frame Size | 42 x 42mm |
| Length | 39mm | |
| Shaft Diameter | Φ5mm | |
| Shaft Length | 22mm | |
| Motor Leads | 4 | |
| Weight | 0.28kg | |
| Technical Parameters | Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% | |
| Inductance Accuracy | ±20% | |
| Temperature Rise | 80℃ Max. (rated current, 2 phase on) | |
| Ambient Temperature | -10℃~+50℃ | |
| Insulation Resistance | 100MΩ Min. 500VDC | |
| Dielectric Strength | 1Min. 500VAC·5mA | |
| Shaft Radial Play | 0.06Max. 450g | |
| Shaft Axial Play | 0.08Max. 450g | |
| Quality Assurance | Warranty Period | 12 months |
| Certificate | CE, ROHs, ISO/SGS9001 |
Nema 17 Stepper Motor Dimension (Unit=mm)
L1=24mm, Lmax=39mm
Nema 17 Stepper Motor Wiring Diagram
Tips: Why the torque of the stepper motor is reduced along with the rise in rotational velocity?
When the stepper motor rotates, the inductance of each phase winding of motor will form a reverse electromotive force. The higher the frequency the larger the reverse electromotive force. Under its role, the the phase current of motor is reduced along with the increase in frequency rate (or velocity), thus the torque decreases.
