One Diaphragm Coupling, 12mm To 25mm

One Diaphragm Coupling, 12mm To 25mm
One Diaphragm Coupling, 12mm To 25mm
One Diaphragm Coupling, 12mm To 25mm
One Diaphragm Coupling, 12mm To 25mm
One Diaphragm Coupling, 12mm To 25mm
0 reviews • Write a review
from
$136.98
Ex Tax: $136.98
  • Stock: In Stock
  • Model: KOLAUT-SC-GSM5645
  • Weight: 1.00
  • SKU: KOLAUT-SC-GSM5645

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.3 Nm Electromagnetic Power Off Brake, 24VDC
Quickview
0.3 Nm Electromagnetic Power Off Brake, 24VDC
$129.86
Ex Tax:$129.86
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 1/4 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 1/4 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 3/8 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 3/8 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 1/2 Inch Swing Check Valve, DN40, CPVC
Quickview
1 1/2 Inch Swing Check Valve, DN40, CPVC
$252.23
Ex Tax:$252.23
Add to Cart Add to Wish List Compare this Product
1 1/2" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/2" Pneumatic Diaphragm Valve, Sanitary
$532.15
Ex Tax:$532.15
Add to Cart Add to Wish List Compare this Product
1 1/2" Spring Loaded Pressure Relief Valve, DN40
Quickview
1 1/2" Spring Loaded Pressure Relief Valve, DN40
$121.85
Ex Tax:$121.85
Add to Cart Add to Wish List Compare this Product
1 1/4 Inch Swing Check Valve, DN32, CPVC
Quickview
1 1/4 Inch Swing Check Valve, DN32, CPVC
$209.23
Ex Tax:$209.23
Add to Cart Add to Wish List Compare this Product
1 1/4" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/4" Pneumatic Diaphragm Valve, Sanitary
$409.23
Ex Tax:$409.23
Add to Cart Add to Wish List Compare this Product

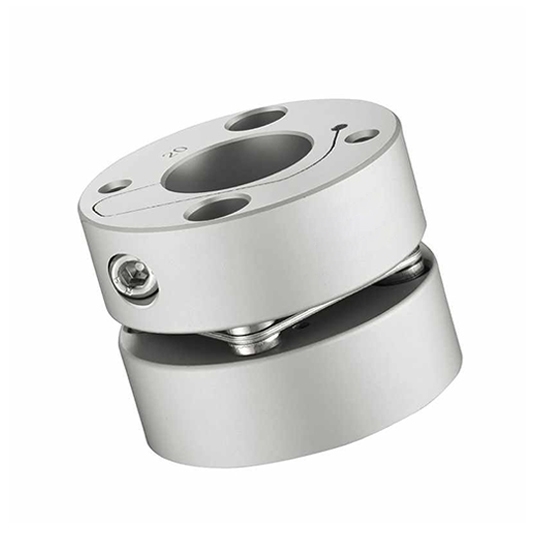

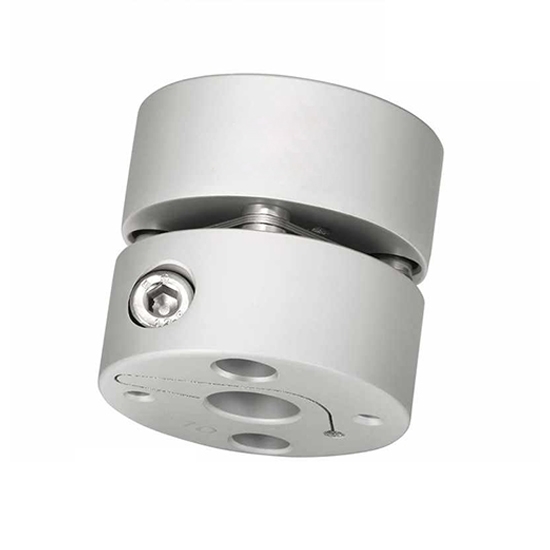

12mm to 25mm shaft coupler size 56 x 56mm, single diaphragm internal clamping, low inertia, suitable for high-speed servo motors and stepping motors.

Specification

ModelKOLAUT-SC-GSM5645
Length45mm
Width56mm
Bore12mm to 25mm
Rated Torque25 N.m
Allow Eccentricity0.1mm
Allowable Deflection Angle1∠°
Allowable Axial Deviation±0.36
Allowable Speed10000 RPM
Static Torsional Stiffness2000N.m/rad
Moment of Inertia1.2 x 10-4
Weight220g
CertificateISO9001, REACH, RoHS
Warranty12 Months


Single Diaphragm Flexible Coupling Dimension (unit: mm)

d1/d2 Inner Diameter SizeΦdLLFSFMTightening Torque
8-9-9.525-10-11-12-12.7-14-15-16-17-18-19-20-22-24-25564519.755.56.4M58 N.m


Details


Keyway

Shaft DiameterKeyway Standard Machining DimensionsKeyway Size
d1/d2bt(bXh)
Width of grooveToleranceDepth of grooveTolerance
φ6~φ7.92±0.01251±0.102x2
φ8~φ1031.43x3
φ10.1~φ124±0.01501.84x4
φ12.1~φ1752.35x5
φ17.1~φ2262.86x6
φ22.1~φ308±0.01803.3±0.208x7
φ30.1~φ38103.310x8
φ38.1~φ4412±0.02153.312x8
φ44.1~φ50143.814x9
φ50.1~Ф58164.316x10
φ58.1~φ65184.418x11


Keyway Machining Standard Drawing

Tips: Diaphragm coupling advantages
The diaphragm coupling has a simple structure and high reliability. It is suitable for high-speed, high-power, high-temperature and corrosive environments. It has great axial and angular compensation, good anti-misalignment, and has vibration absorption and vibration isolation functions.  The coupling has no noise, zero clearance, constant speed, no need for lubrication. The additional load acting on the connected equipment is small, and the diaphragm coupling is easy to install, use and maintain.
