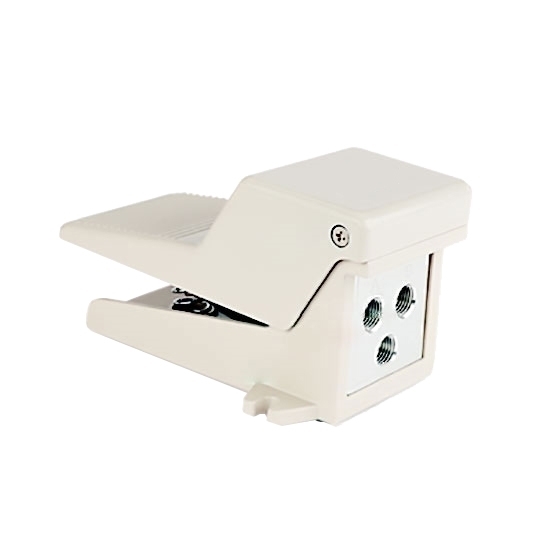

Silent pneumatic foot switch, 5 way 2 position, maximum pressure 114 psi, working medium is air, pneumatic foot pedal switch built-in thickened spring, good resilience.

Specification

• Model: KOLAUT-4F210-08
• Working Medium: Air
• Action Mode: Foot control direct action
• Port Size: PT 1/4
• Number of Positions: 5 Way 2 position
• Operating Pressure Range: 0~0.8 MPa (0~114 psi)
• Pressure Resistance: 1.5 MPa (215 psi)
• Working Temperature: -20~70℃
• Material: Aluminum alloy
• Weight: 490g

Features

• Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
• Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
• The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
• Bold spring, good quality and durable, not easy to rust.

 5 Way 2 Position Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Details

Tips: What is a foot pedal switch?

A foot pedal switch is operated by the foot. They are also referred to as footswitches, foot pedals, foot actuated switches etc.

There are different types of foot pedal switches and these can be used throughout many industries. We also have a range suited to applications in the industrial sector, these foot pedal switches have added features to make sure they are suitable for this harsh environment; footswitch guards and emergency stop buttons are common additions to these types of products.
