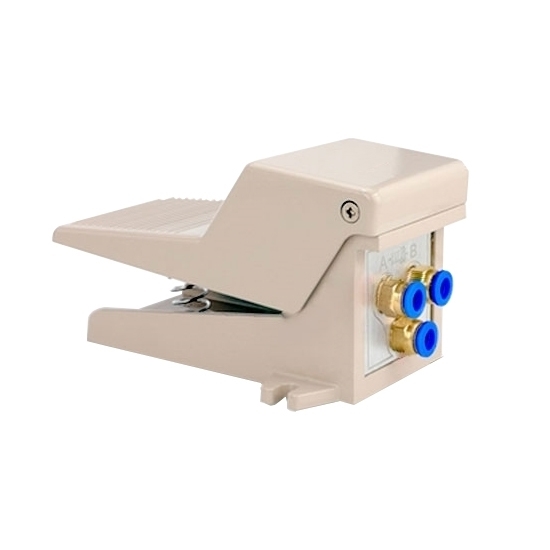

2 position 5 way pneumatic foot operated pedal valve for sale, inlet and outlet is 1/4",  pneumatic fitting optional 6mm, 8mm and 10mm, operating pressure range: 0~0.8 MPa (0~114 psi), widely used in industrial work.

Specification

• Model: KOLAUT-4F210-086
• Working Medium: Air
• Action Mode: Foot control direct action
• Port Size: PT 1/4
• Pneumatic Fitting: 6mm, 8mm, 10mm
• Number of Positions: 5 Way 2 position
• Operating Pressure Range: 0~0.8 MPa (0~114 psi)
• Pressure Resistance: 1.5 MPa (215 psi)
• Working Temperature: -20~70℃
• Material: Aluminum alloy
• Weight: 490g

Features

• Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
• Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
• The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
• Bold spring, good quality and durable, not easy to rust.

 5 Way 2 Position Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Details

Tips: Why do you need a pneumatic foot switch?

In many cases, a foot switch is used because it allows the user to perform multiple tasks by operating a machine or computer "hands-free". If the user is in a call center, the footswitch can be used to answer calls so that the user can operate the computer with both hands.

Using a foot switch also ensures that the workspace is kept clean and tidy. Leaving the foot switch on the floor means more room on the table, and using a manual control or hand switch won't have the same effect.
