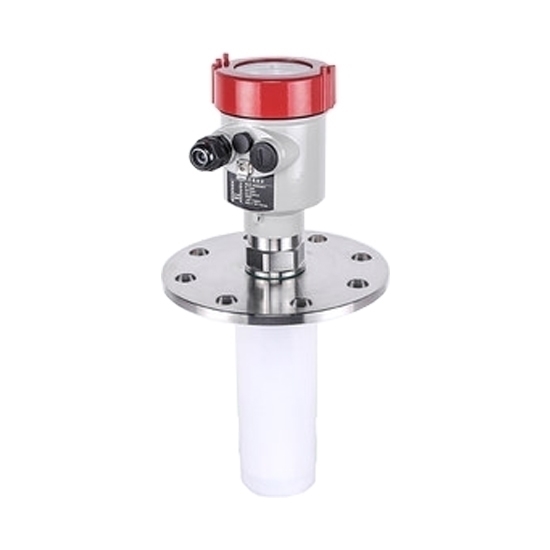

Radar Liquid Level Sensor, Non-contact, 4-20mA/RS485, 0-20M

Radar Liquid Level Sensor, Non-contact, 4-20mA/RS485, 0-20M
Radar Liquid Level Sensor, Non-contact, 4-20mA/RS485, 0-20M
0 reviews • Write a review
from
$1,563.49
Ex Tax: $1,563.49
  • Stock: In Stock
  • Model: KOLAUT-LEVS-RD902T
  • Weight: 1.00
  • SKU: KOLAUT-LEVS-RD902T

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0-10V Signal Isolator, 1/2 Outputs
Quickview
0-10V Signal Isolator, 1/2 Outputs
$94.86
Ex Tax:$94.86
Add to Cart Add to Wish List Compare this Product
1" Digital Flow Switch For Water
Quickview
1" Digital Flow Switch For Water
$446.39
Ex Tax:$446.39
Add to Cart Add to Wish List Compare this Product
1-phase AC Current Transducer, 0-1A/5A/10A/20A
Quickview
1-phase AC Current Transducer, 0-1A/5A/10A/20A
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
Quickview
1-phase AC Voltage Transducer, 0~120V/300V/450V/600V
$175.54
Ex Tax:$175.54
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Air
Quickview
1/2" Digital Flow Switch For Air
$231.79
Ex Tax:$231.79
Add to Cart Add to Wish List Compare this Product
1/2" Digital Flow Switch For Water
Quickview
1/2" Digital Flow Switch For Water
$307.99
Ex Tax:$307.99
Add to Cart Add to Wish List Compare this Product
1000mm Level Sensors For Sewage Disposal System
Quickview
1000mm Level Sensors For Sewage Disposal System
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
Quickview
1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder
$979.86
Ex Tax:$979.86
Add to Cart Add to Wish List Compare this Product

Non-contact liquid level sensor for non-contact corrosive liquid, vapors, volatile liquid level measurement has maximum measuring range 0-20m, can transmit and output 4-20mA, HART or RS485 signal to remote control system. It has an IP67 protection level and is dust and water resistant.

Specification

ModelKOLAUT-LEVS-RD902T
Shipping Weight6.5kg
Measuring Range0-20m
Accuracy±10mm
Resolution1mm
DisplayLCD Display
Measured Interval1s (according to parameter setting)
Adjustment Time1s (according to parameter setting)
Microwave Frequency26GHz
Output Signal*4-20mA, Modbus RTU (RS485 Port), 4-20mA+HART
Power Supply*DC 12-24V, AC 220V/50Hz
MaterialShell: Aluminum, Process Connection: 304 Stainless Steel, Horn: 304 Stainless Steel
Horn Antenna Size*Φ78mm/ Φ98mm/ Φ146mm
Pressure-0.1 ~ 2.0MPa
Shock Resistance10m/s2, (10~150)Hz
Communication ProtocolModbus
MediumCorrosive Liquids, Vapors, Volatile Liquids
Storage Temperature-40~+100℃
Process connection (antenna) temperature-40~+150℃
Medium Temperature*-40~+130℃, -40~+230℃
Protection ClassIP67
Electrical Connection2 waterproof connectors M20*1.5mm, or 2 waterproof connectors 1/2" NPT
Installation*Flange
Warranty12 Months

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Dimensions (Unit: mm)

Installation

Wiring

Details

Tips: Radar level sensor measurement range description

  1. The top dead zone refers to the minimum distance between the highest material surface of the material and the measurement reference point.
  2. Bottom dead zone refers to a distance near the very bottom of the cable that cannot be accurately measured.
  3. The effective measurement distance is between the top dead zone and the bottom dead zone.

Note: Radar level sensor can only ensure reliable measurement of the level in the tank when the material is between the top dead zone and the bottom dead zone.
