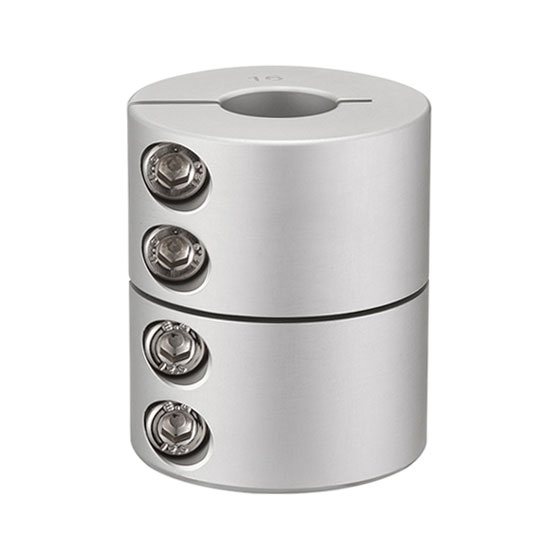

Rigid Coupling, 16 X 16mm

Rigid Coupling, 16 X 16mm
Rigid Coupling, 16 X 16mm
0 reviews • Write a review
from
$99.85
Ex Tax: $99.85
  • Stock: In Stock
  • Model: KOLAUT-SC-GNC-1616
  • Weight: 1.00
  • SKU: KOLAUT-SC-GNC-1616

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
0.3 Nm Electromagnetic Power Off Brake, 24VDC
Quickview
0.3 Nm Electromagnetic Power Off Brake, 24VDC
$129.86
Ex Tax:$129.86
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 1/4 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 1/4 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 Piece Stainless Steel Ball Valve, 3/8 Inch
Quickview
1 Piece Stainless Steel Ball Valve, 3/8 Inch
$29.68
Ex Tax:$29.68
Add to Cart Add to Wish List Compare this Product
1 1/2 Inch Swing Check Valve, DN40, CPVC
Quickview
1 1/2 Inch Swing Check Valve, DN40, CPVC
$252.23
Ex Tax:$252.23
Add to Cart Add to Wish List Compare this Product
1 1/2" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/2" Pneumatic Diaphragm Valve, Sanitary
$532.15
Ex Tax:$532.15
Add to Cart Add to Wish List Compare this Product
1 1/2" Spring Loaded Pressure Relief Valve, DN40
Quickview
1 1/2" Spring Loaded Pressure Relief Valve, DN40
$121.85
Ex Tax:$121.85
Add to Cart Add to Wish List Compare this Product
1 1/4 Inch Swing Check Valve, DN32, CPVC
Quickview
1 1/4 Inch Swing Check Valve, DN32, CPVC
$209.23
Ex Tax:$209.23
Add to Cart Add to Wish List Compare this Product
1 1/4" Pneumatic Diaphragm Valve, Sanitary
Quickview
1 1/4" Pneumatic Diaphragm Valve, Sanitary
$409.23
Ex Tax:$409.23
Add to Cart Add to Wish List Compare this Product

4mm to 8mm rigid coupling made of high-strength aluminum alloy, clamping screw tightening method, 16mm length, 16mm width, rigid couplings basically do not allow eccentricity, and must be fully eccentrically adjusted during use.

Specification

ModelKOLAUT-SC-GNC-1616
Rated Torque5 Nm
Allowable Speed9400rpm
Moment of inertia2.9 X 10-7
d1/d2 Inner Diameter Size3-4-5-6-6.35-7-8
Φd16
L16
F3.75
Moment of inertiaM2.5
Tightening Torque1 N.m
Weight7g
CertificateISO9001, REACH, RoHS
Warranty12 Months

Rigid Clamp Coupling Dimension (unit: mm)

Tips: Types Of Shaft Coupling

1. Rigid coupling
Rigid couplings are divided into sleeve couplings and flange couplings.

2. Flexible coupling
Flexible coupling without elastic elements: disc pin coupling, cross slide coupling, single universal joint coupling, double universal joint coupling, gear coupling, chain coupling. Flexible couplings with elastic elements are elastic couplings: flexible couplings with metal elastic elements and flexible couplings with non-metallic elastic elements. Among them, flexible couplings with non-metallic elastic elements are divided into elastic sleeve pins Couplings, elastic pin couplings, tire couplings, elastic disc couplings.
