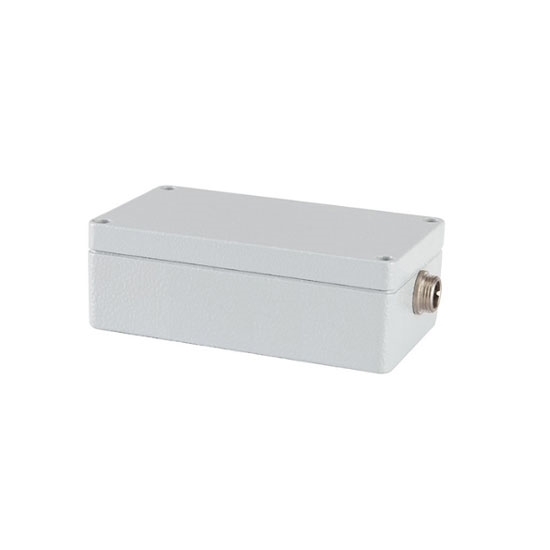

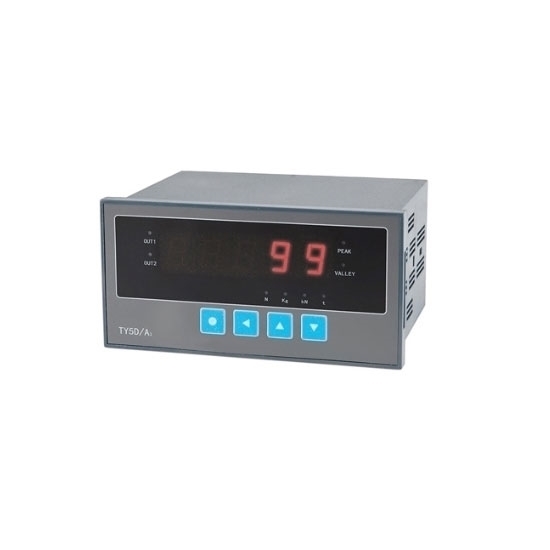

After purchasing one KOLAUT load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

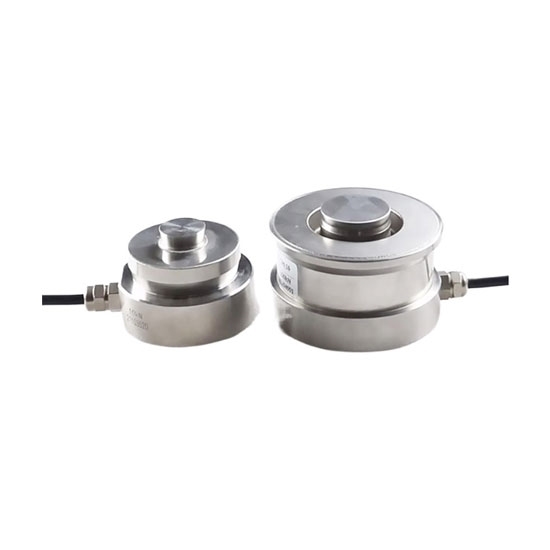

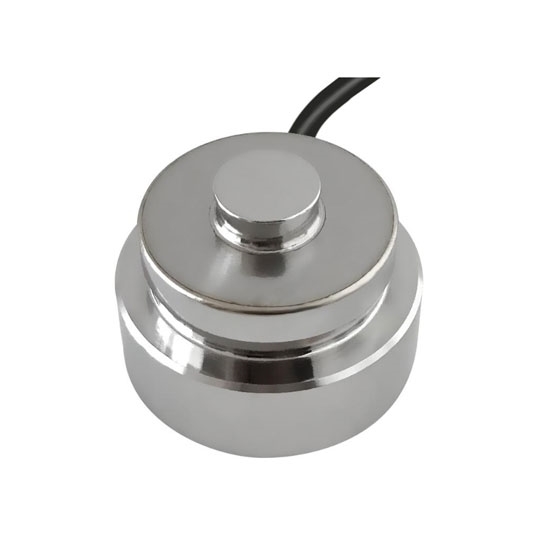

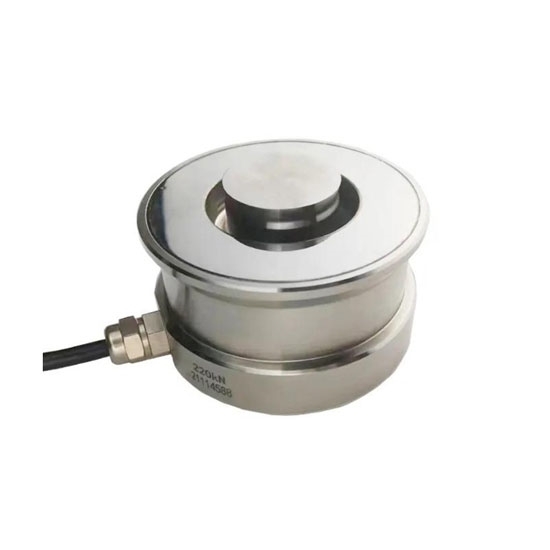

Ring torsion compression load cells with measuring capacities ranging from 1 to 150 tons. These load cells has a sensitivity of 2.85mV/V, exceptional accuracy from 0.05% to 0.1% FS, and maintain a creep specification of ±0.05% FS over 10°C with a zero balance at ±1% FS. Ideal for precise force measurement in truck scales, tank and silo weighing, and industrial automation systems.

Specification

Feature

• Material and Design: The torsion ring load cell is made of stainless steel, featuring a compact size, high resistance to overloads, a wide range, high sensitivity, high accuracy, and good resistance to partial loads.
• Energy Efficiency: High impedance and low power consumption make it ideal for battery-powered measurement units.
• Versatile Applications: Load cell weight sensor suitable for various weighing equipment, including electronic balances and pressure testers.
• Signal Stability: Provides stable output with a stable signal and strong anti-interference ability.
• Ease of Installation: Advanced grinding technology ensures easy installation and precise leveling.

Dimension (unit: mm)

Wiring Method

Application

The ring torsion compression load cell is used in truck scales, tank and silo weighing, and industrial automation systems.

Tips: What is the significance of the high input impedance in ring torsion compression load cell?

Answer: High input impedance reduces power consumption and enhances signal stability, making the load cell more suitable for battery-powered applications. It also minimizes the impact of long cable runs, reducing signal loss and improving measurement accuracy in large industrial setups.
