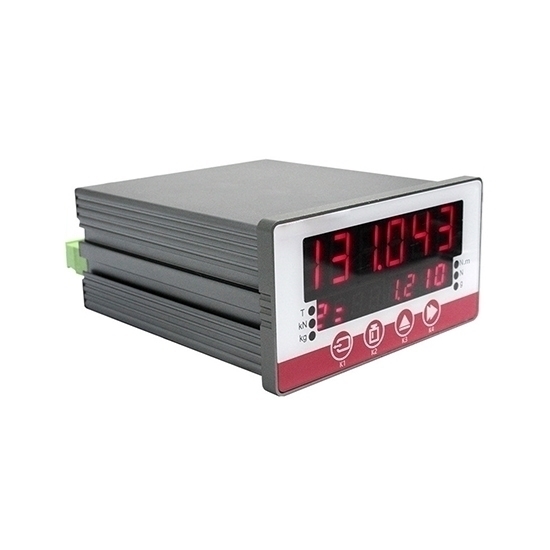

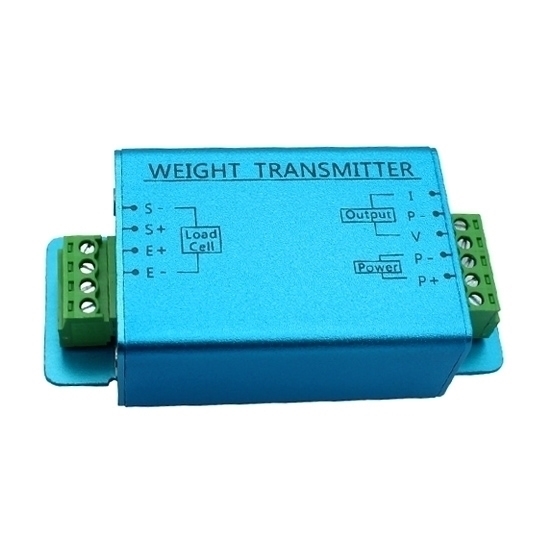

After purchasing one KOLAUT load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

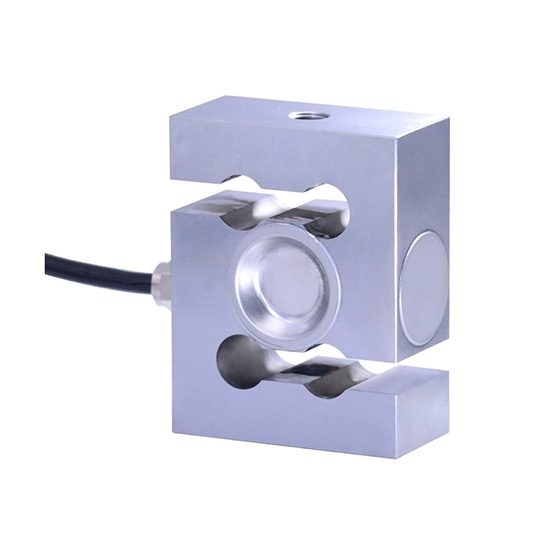

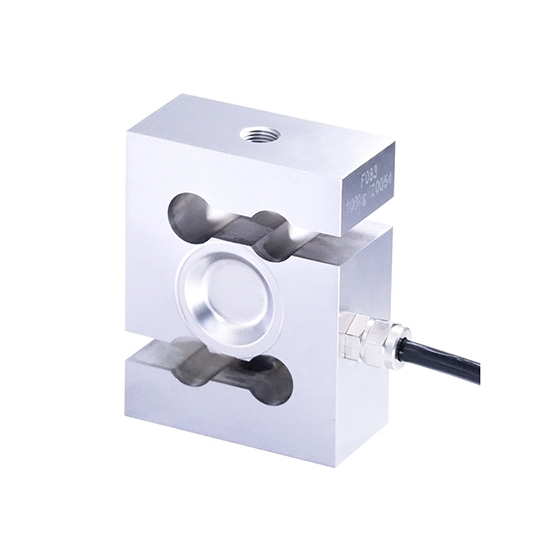

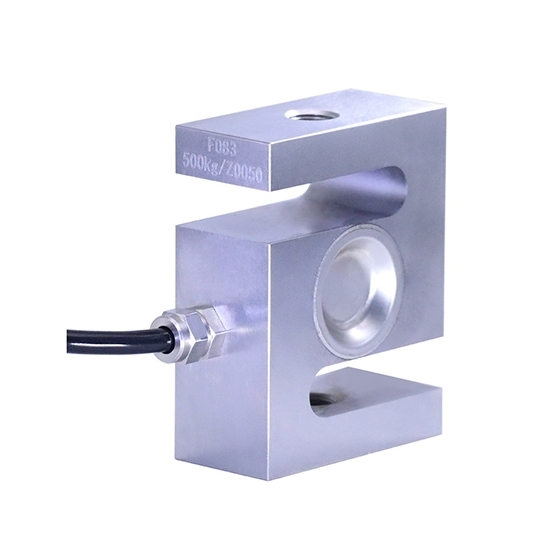

Good price S type load cell for tension and compression with high accuracy, repeatability and temperature sensitivity, with range 200kg/300kg/500kg/1 ton/2 ton/3 ton, operating voltage range 5-15V, high quality stainless steel for long term stability and extreme overload of 200%. Ideal for industrial and commercial use, this load cell is designed to withstand operating temperatures from -20°C to 80°C.

Specification

Dimension (unit: mm)

Force Diagram

Application

Tips: What is the working principle of S-type load cell?

The s type load cell is based on the strain gauge measurement principle. When an external force is applied, the elastomer inside the load cell undergoes a slight deformation, and the strain gauges affixed to it are then stretched or compressed, resulting in a change in resistance. This change in resistance is converted into an electrical signal through a Wheatstone bridge and processed by an amplifier circuit and data acquisition system, ultimately outputting weight data proportional to the load.
