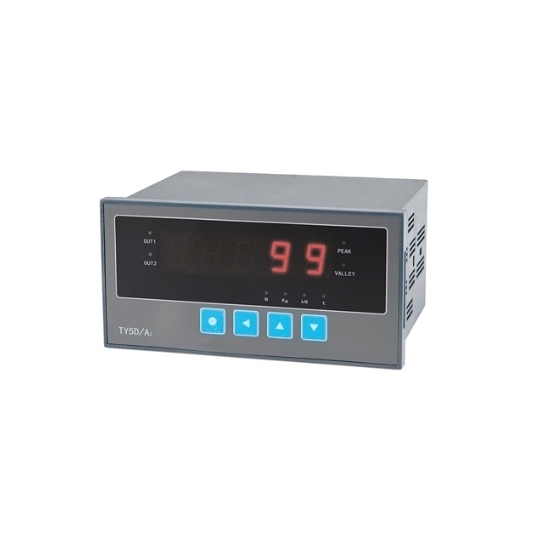

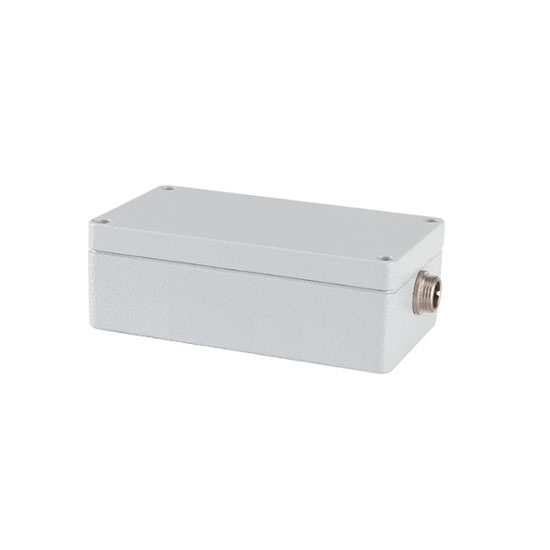

After purchasing one KOLAUT load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

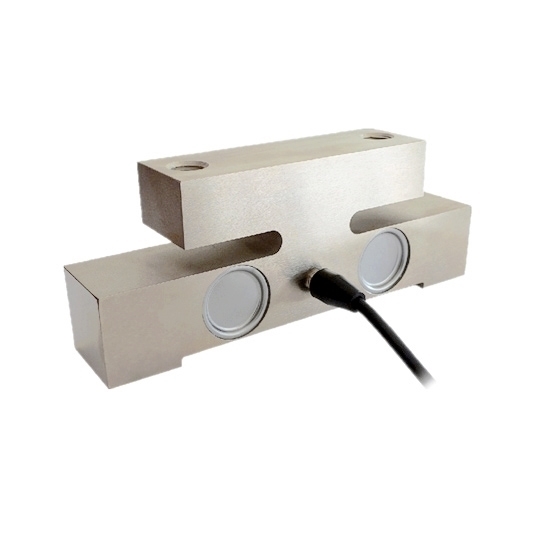

Shear beam load cells have capacity range from 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 20 ton to 30 ton. Load cell capacity can be customized according to customer requirements.

Specification

Feature

• High-Quality 42CrMo Alloy Steel Construction: Made with durable 42CrMo alloy steel, known for its high strength, low deformation, and excellent fatigue resistance, ensuring long-lasting performance.
• Wide Load Capacity Range: Available in capacities from 1 ton to 30 tons, making it suitable for various industrial applications.
• Versatile Application: Ideal for use in weighing systems, load testing, and control systems across industries such as heavy equipment, water treatment, and material handling.
• Excellent Stability: Features a bridge structure that ensures high stability and precision for accurate load measurement in demanding conditions.
• Wide Compatibility: Perfect for truck scales, railway weighbridges, and other industrial scale systems, offering reliability and accuracy in diverse environments.

Shear beam load cell dimension (*bottom plate need to be purchased separately)

Application

Tips: What is a Shear Beam Load Cell?

A Shear Beam Load Cell is a type of load cell designed to measure shear force when weight or load is applied. It uses strain gauges to detect the deformation of a shear beam under load, converting this deformation into an electrical signal that can be measured to determine the force or weight.
