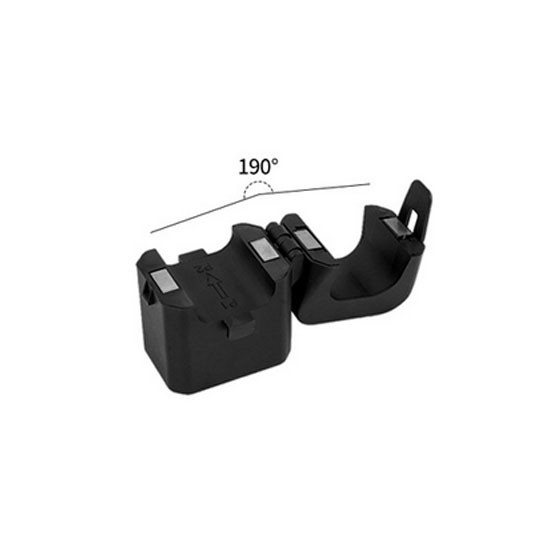

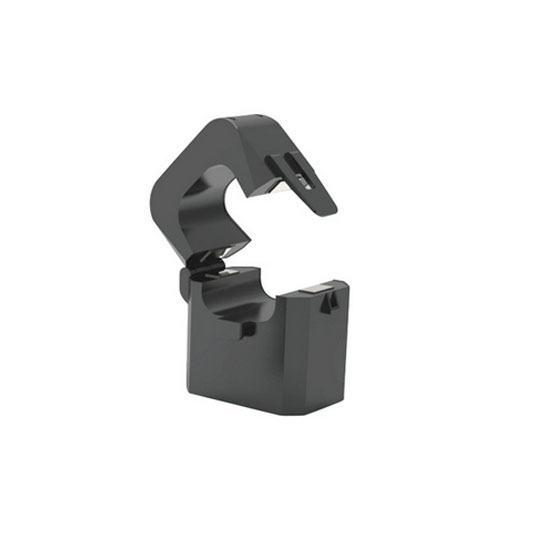

250/5A Split core current transformer voltage isolation capacity, safe and reliable, suitable for AC 220V, 380V power supply, current transformer built-in input coil, compact and lightweight, easy to install.

Specification

• Model: KOLAUT-SCT-CTKD24-250
• Current Ratio: 250/5A
• Accuracy Class: 1.0
• Working Frequency: 50/60Hz
• Measuring Range: 10%ln- 130%ln
• Rated Output: 0.333V(AC) or 0-500mA
• Ratio Difference: ≤±1.0%
• Phase Difference: ≤ soil 10 points
• Dielectric Strength: 2.5kV/1mA/1min
• Insulation Resistance: DC500V/1000mΩ/min
• Shell: ABS, Flame retardant grade 94-V0
• Skeleton: PBT
• Iron Core: Silicon steel
• Internal Structure: Buckle
• Construction Plan: Cable ties fixed
• Operating Temperature: -25°C~75°C
• Ambient Humidity: ≤85%
• Wiring: 1.5m Red and black wire

250A Split Core Current Transformer Dimension

Tips: Current Transformer Accuracy Levels

Current transformer accuracy levels are 0.1, 0.2 (0.2S), 0.5 (0.5S), 1, 3, and 5P, 10P levels. 0.1 level is used for precision measurement in laboratory; 0.2 (0.2S) and 0.5 (0.5S) levels are used for power metering; 1 and 3 levels are used for current measurement; 5P and 10P are used for protection, such as overload protection current transformer, differential protection current transformer, grounding protection current transformer (zero sequence current transformer).
