Note: This needle valve cannot be used for drinking water.

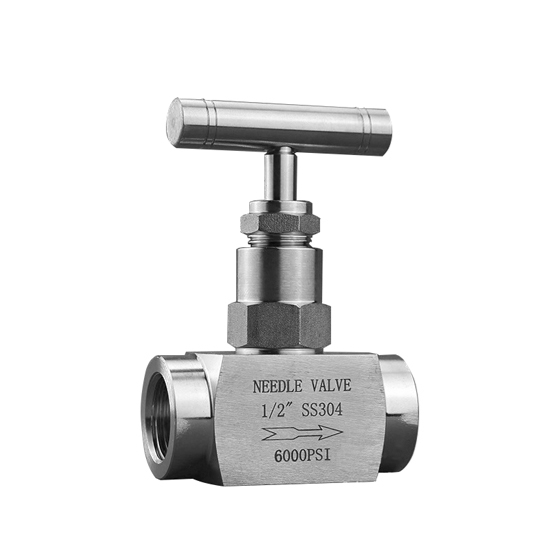

Good price KOLAUT 1/2" stainless needle valve is a compact 2-way needle valve made of 304/ 316 stainless steel and the temperature range is -20 to max. 180 °C. This needle valve can be used as a reliable shut-off valve, or to accurately control flow rates of clean gases or fluids.

Specification

• Model: KOLAUT-NV-DN15
• Size: 1/2 inch
• Connection thread size: DN15
• Needle valve diameter: 6mm
• Nominal pressure: 40 MPa/ 41MPa
• Material: 304 stainless steel: G1/2"/ M1/2", 316 stainless steel: G1/2"/ 1/2"NPT
• Working pressure: ≤420 bar
• Working temperature: -20~180℃
• Installation method: Screw connection
• Medium: Gas, liquid

Features

• Smooth and accurate flow control
• With a very compact design and reliable leak tight shut off
• High pressures up to 6000 bar
• Wide temperature range from -20 up to 180°C.
• Suited for aggressive fluids thanks to the 304 stainless steel

Dimension

Stainless Steel Needle Valve Application

Tips: How does a needle valve control pressure?

An instrument needle valve uses a tapered pin to gradually open a space for fine control of flow. The flow can be controlled and regulated with the use of a spindle. A needle valve has a relatively small orifice with a long, tapered seat, and a needle-shaped plunger on the end of a screw, which exactly fits the seat.
