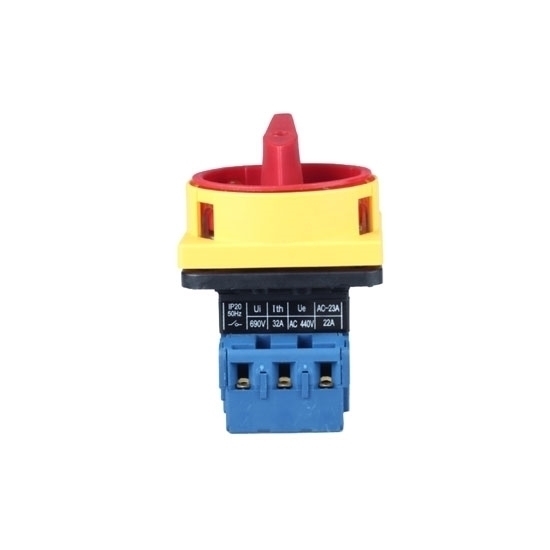

Rotary cam switch 3 pole/4 pole is available, 80A, frequency 50Hz, changeover switch can be used for commutation measurement of various control lines, voltmeters and ammeters.

Specification:

Dimensions

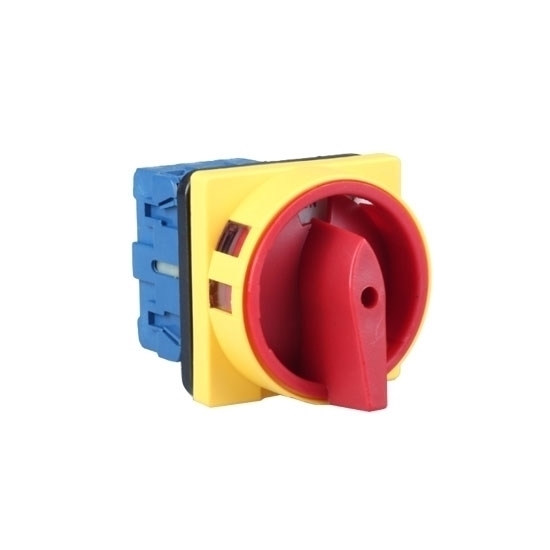

1. Default version

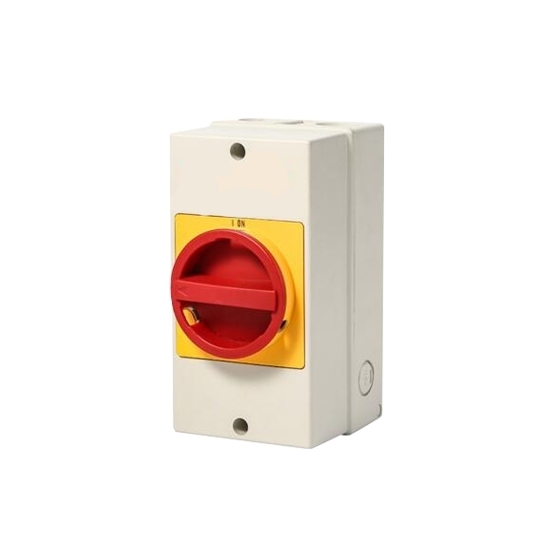

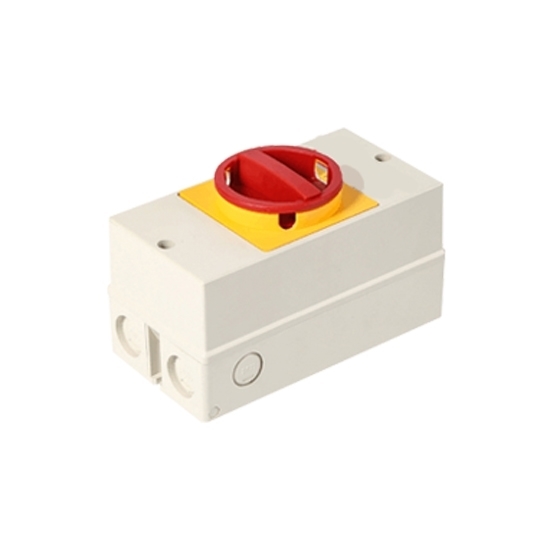

2. IP65 version

Rotary Switch Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.

Tips: In the configuration of the rotary switch, a rotating shaft is formed by the bottom through the top cover to form a rotating handle, and the bottom plate and the top cover are clamped and fixed up and down to form a switch assembly. When in use, it can rotate 90 degrees 180 degrees or 360 degrees, each rotation to a position. The movable contacts are connected to different static contacts, and different states can be outputted on the external terminals, thereby achieving control.
