Note: This butterfly valve cannot be used for drinking water.

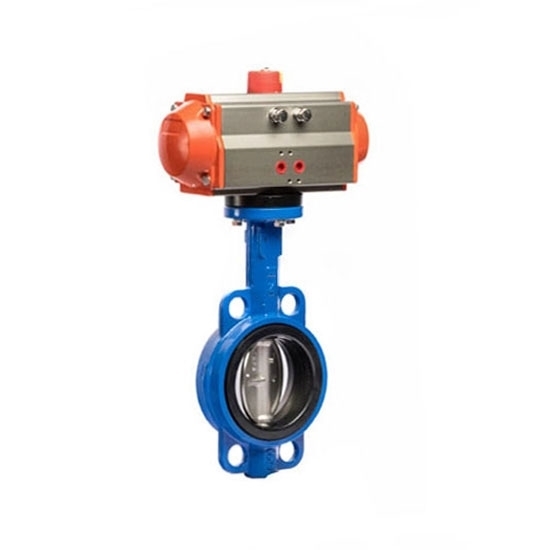

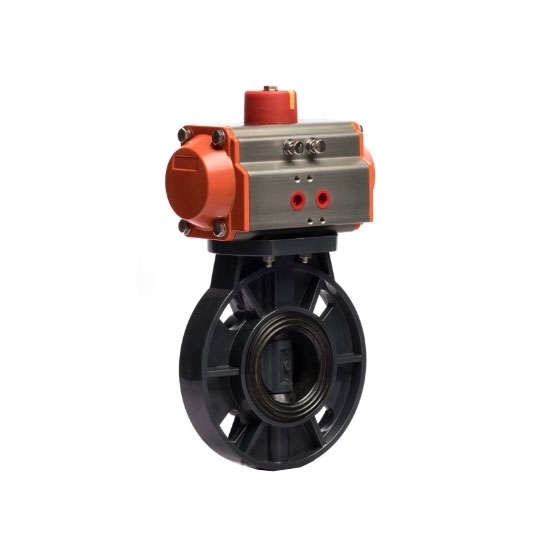

8 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 200mm (DN200) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly ValveModelKOLAUT-PBV-200
MediaWater, Air, Gas, Oil, Liquid, etc.
Butterfly Valve TypeWafer TypePVC Type
Port Size8 inch (DN200, 200mm)
Body MaterialCast IronPVC
Disc MaterialStainless Steel (SS)UPVC
Seat MaterialEPDM
Working Temperature-10 °C to 120 °C
Pneumatic ActuatorModelKOLAUT-AT125D
Actuator TypeDouble Acting
Bore Size125mm
Air Pressure0.25 - 0.8MPa, PN16
Pressure Difference0 - 1.0MPa
Air Supply Port1/4 inch
Actuator MaterialAluminum Alloy


Wafer Butterfly Valve Body Dimension (Unit: mm)

DNLH1H2ADD1N-φd
20060.51754573492952654-25


PVC Butterfly Valve Body Dimension (Unit: mm)

JISANSIDINDD2D3H2H3W1W2d1D4SHL
D1n-φeD1n-φeD1n-φe
2408-23241.58-232408-1828715216917719705410.510222360268


Pneumatic Actuator Dimension (Unit: mm)

KOLAUT-AT125D

QABCDEFGHI
Φ70/Φ102mm349mm147mm67mm80mm189mm159mm30mm80mmPF
JKOPSTUVWX
M61/4"20mm56.5mm4mm4mm12mm24mm16mm32mm

Details

Tips: Difference between pneumatic butterfly valve and hand operated butterfly valve

Manual butterfly valves rely on manpower to switch on and off, and pneumatic butterfly valves rely on air pressure to push. The air path of the pneumatic butterfly valve is equipped with a solenoid valve, which can realize automatic control.
