Note: This butterfly valve cannot be used for drinking water.

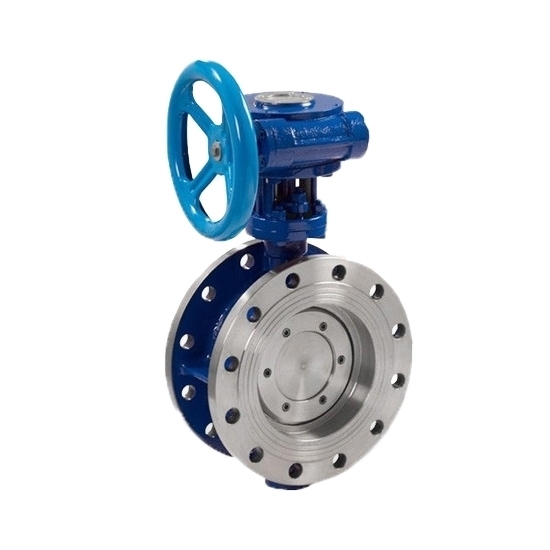

KOLAUT 3 inch triple offset butterfly valve for sales. The triple eccentric butterfly valve adopts the design of the three-dimensional eccentric principle so that the spatial trajectory of the sealing surface can be idealized, and there is no friction and no interference between the sealing surfaces.

Features

• The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
• The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
• Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.

Specification

• Model: KOLAUT-D343H-16C-DN80
• Port Size: 3 inch (DN80)
• Nominal pressure: PN16
• Connection Type: Flanged Type
• Body Material: Cast steel WCB/ Stainless Steel
• Disc Material: Cast steel WCB/ Stainless Steel
• Media: Water, weak acid base, air, steam, oil, etc.
• Working Temperature: Cast steel: -29℃～425℃, Stainless steel -40℃～600℃

Dimension

Application

Tips: What is the difference between triple offset and double offset butterfly valves?

The Double Offset Butterfly Valve is better suited for bubble-tight sealing, while the triple offset butterfly valve is better suited for high temperatures, high pressure, and abrasive media. In addition, the triple offset butterfly valve has a high sealing surface and requires less maintenance.
