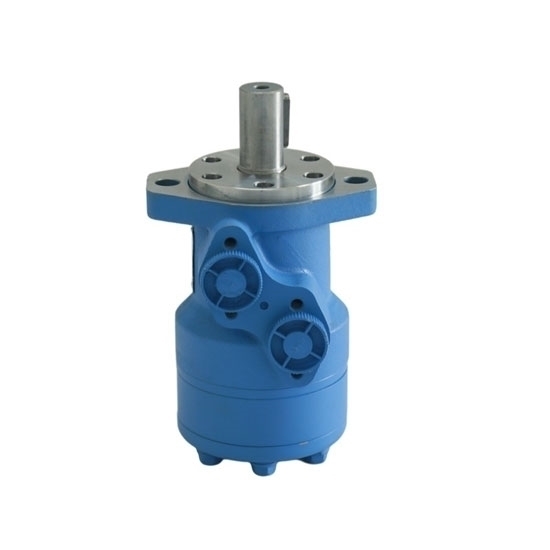

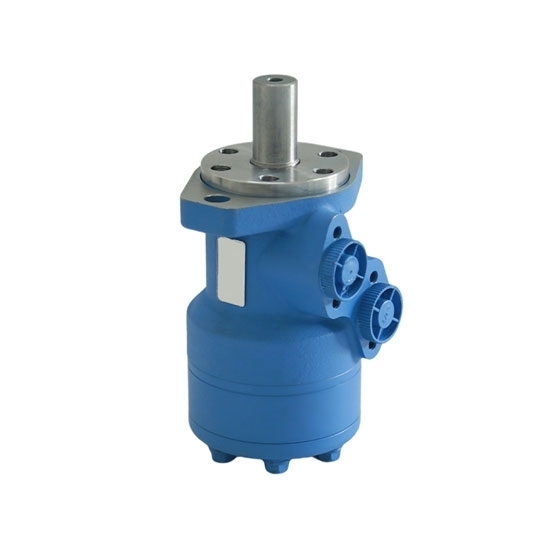

Hydraulic orbital motor is designed for disc distribution flow, which can provide improved performance at low speed and higher volumetric for the automatically compensated wear. It can be used on heavy vehicles and machinery in traction drive applications.

Specification

Note:

• A simultaneous maximum torque and maximum speed are not recommended.
• ∆Bar refers to true pressure difference between inlet port and outlet port.
• Continuous Rating means that the motor may be run continuously at these ratings.
• Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=160mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=167mm

Details

Tips for using hydraulic orbital motor

• Before operation, check whether all components of the hydraulic system are connected correctly, and add oil to the specified height through the filter.
• Start and run this hydraulic orbital motor for 10 to 15 minutes under no load, and exhaust, foam in the fuel tank, noise in the system, and stagnation in the motor cylinder all prove that there is air in the system.
• After removing the air, fill up the fuel tank, and then gradually increase the load on the motor until the maximum load, and observe whether there are abnormal phenomena such as noise, oil rise and oil leakage.
• Replace the oil once after 50 hours of operation, and then follow the maintenance rules.
• If it is not a motor failure, please do not disassemble it.
