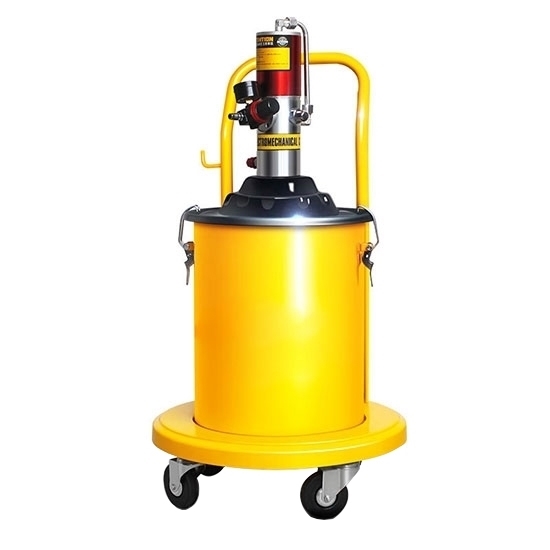

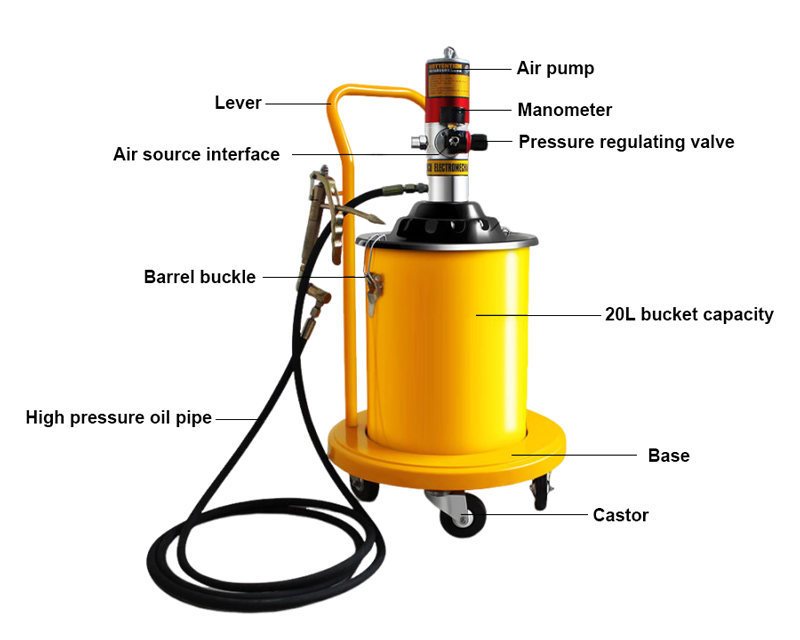

5 gallons pneumatic grease pump is essential professional equipment for the mechanization of grease injection. Portable air grease pump is widely used in the automobile industry, shipbuilding industry, engineering machinery, chemical industry, etc.

Specification

• Model: KOLAUT-5GP
• Pump ratio: 50:1
• Oil outlet pressure: 30- 40Mpa
• Air intake range: 0.6-0.8Mpa
  Delivery Rate: 0.85L/min
• Capacity: 20L/5gal
• Net weight: 16.9kg
• Packing size: 450*450*840mm
• Package includes: 5m tube, gimbal gun, accessories bag
• Applications: factories, railways, ships, construction machinery, trucks

Details

5 Gallons Pneumatic Grease Pump Applications

Tips for using a pneumatic grease pump

With the rising status of lubricating grease in the machinery industry, air grease pumps have received extensive attention and applications. In daily use, improper operation will result in an unsatisfactory oil filling effect of the air-operated grease pump. In order to ensure the normal operation of the grease pump pneumatic, the following are the matters needing attention when using the air grease pump:

• The compressed air used by the air-powered grease pump should be filtered to prevent dirt from entering the air pump and wearing the air distribution slider and the parts of the cylinder.
• It is strictly forbidden to use flammable gas as the power of the pneumatic grease machine. The pressure of using compressed air should not exceed 116psi.
• Avoid overloading the air pressure grease pump equipment.
• The high-pressure grease hose is not allowed to be bent strongly and dragged on the ground during use, otherwise, it will affect the service life.
• When the portable grease pump is not working, remove the air quick-change connector and pull the trigger of the grease gun to reduce the oil pressure in the equipment to avoid long-term pressure on the high-pressure air hose.
• The air pump part needs to be lubricated regularly.
• In the process of disassembling, repairing and assembling the air grease pump, attention must be paid to the accuracy of the folded parts, and do not touch or crush them.
• Do not let the air-powered grease pump do the no-load reciprocating motion for a long time to avoid dry friction and affect the service life.
• Do the cleaning and maintenance work of the grease pump pneumatic at ordinary times, and often clean the entire oil passage system.
• Fold the oiling gun off the nozzle, circulate it with clean engine oil several times to flush the dirt in the pipe, and clean the oil storage barrel frequently to keep the barrel clean.
